Kandao Meeting Ultra Standard
in Video Conferencing
Dual 4K HDR Capture
(3840 x 2160 Output)
AI Face Detection and Tracking
Innovative Tool for Hybrid Collaboration
360-DEGREE FIELD OF VISION
360° Fully Covered for Equal Conferencing
Fully cover the entire meeting room and capture in 360 degrees with two ultra-high-definition fisheye lenses. Capture from the center of lenses instead of the edge to avoid poor image quality. Perform clearly with fine details through intelligent noise reduction, wide dynamic range, exposure compensation, and auto white balance.
Follow the Speaker
With AI motion detection algorithm, the speaker is smartly tracked and auto-framed. No need to sit fixed in front of the camera, the speaker can stand up and walk around to give a presentation.
CPU, GPU AND NPU
Get a Real-Time Feedback
A seamless conversation is achieved with powerful CPU, GPU, and NPU through stable transmission, precise human-face and voice detection, and low-latency tracking of whoever is speaking.
AI Speaking Person Detection Algorithm 4.0
Kandao Meeting Ultra Standard features an upgraded AI Detection Algorithm 4.0 which can accurately localize and auto-frame the local meeting attendees, especially the active speaking person in ultra-low latency with 15-degree ultimate recognition. The active speaker is always highlighted and placed in the center focus for remote participants.
SPEAKER AND MICROPHONES
Your Idea is Well Conveyed and Heard
Kandao Meeting Ultra Standard has a full-duplex audio system composed of an eight-omnidirectional microphone array and a 10 Watt Hi-Fi speaker. This not only ensures a wide 5.5-meter-radius voice pickup range but also premium sound quality output for conveying clear messages in remote meetings. It is also available to mute by simply pressing the button.
Hi -Fi speaker
radius voice pickup
Ambient Noise Cancellation
Even in noisy surroundings, voice can be well-conveyed with a brand-new AI noise reduction algorithm. Without affecting the clarity and quality of voices, it cancels distracting noises such as keyboard typing, car honking, doors opening and closing, chairs moving, pen clicking, and noise from other equipment, creating a focused meeting environment.
Meeting Ultra Clear 4K with HDR
Wave goodbye to blurry image quality. Kandao Meeting Ultra Standard outputs streams at 4K 30FPS HDR video to get rid of over-exposed images even when conferencing near windows. The built-in noise reduction algorithm creates vivid and clear hybrid meeting experiences like never seen before.
UPGRADED NOISE REDUCTION ALGORITHM
Built-in Operation System
Kandao Meeting Ultra Standard has a built-in Android OS with a friendly user interface where users can download video conferencing software directly onto the device, creating a perfect solution for hybrid collaboration.
TWO Modes TO USE
Multiple Choices for Setup and Placement
Connect Meeting Ultra Standard to your computer with a USB cable to start a hybrid collaboration with auto-framing.
It’s a total conferencing solution with dual 4K lenses, a built-in operation system, an eight-microphone array, a Hi-Fi speaker, and dual 4K lenses. You are all set for a meeting.
HDMI IN AND HDMI OUT
Share the Screen through HDMI
Connect your computer to Kandao Meeting Ultra Standard through HDMI IN to share your computer screen.
Display in Different

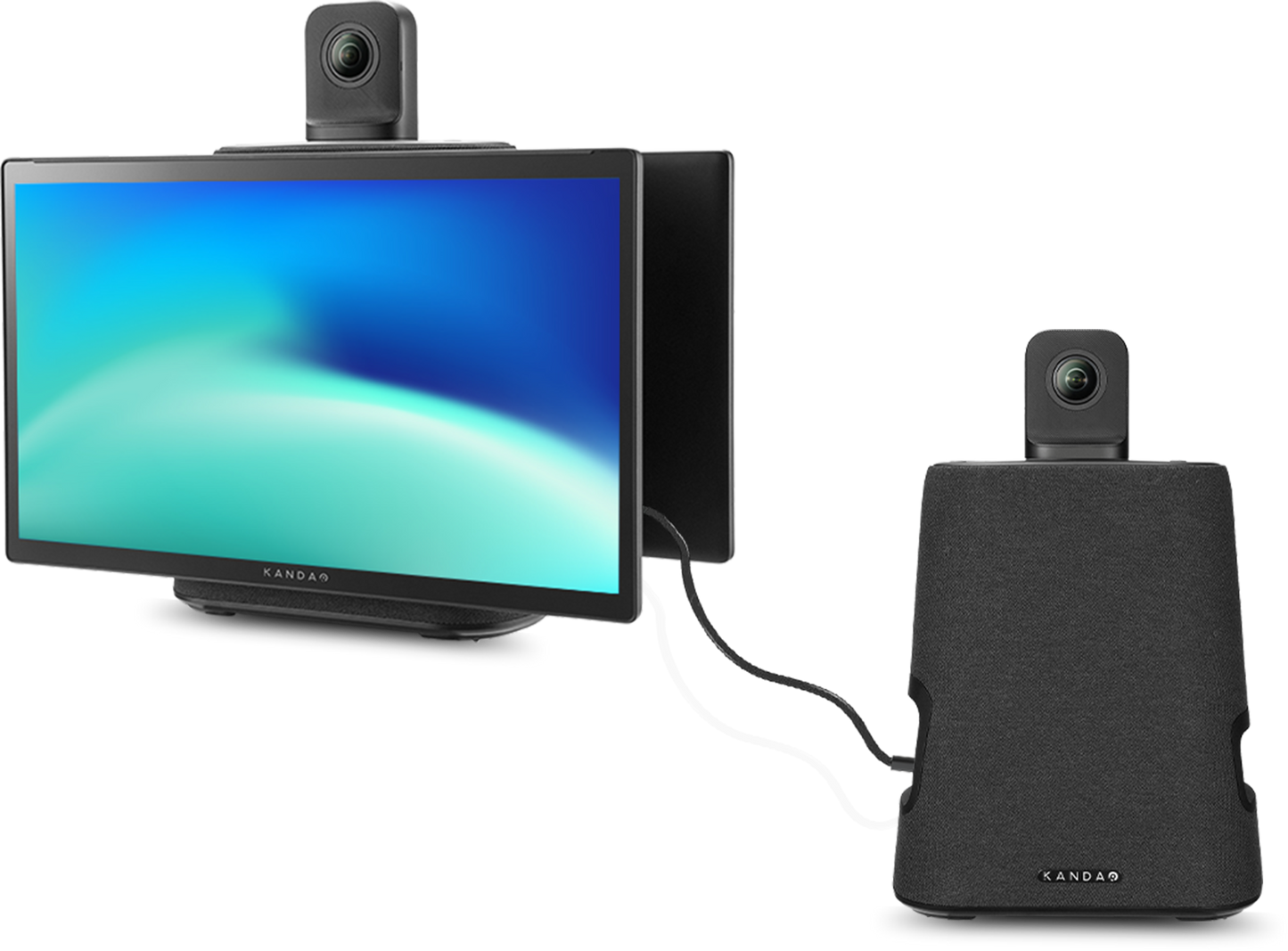

Two HDMI OUT
Supports HDMI outputs to two external screens, so everyone can see clearly in a large space. Two external screens can display differently.
One-Step Screen Mirroring from Multi-Type Devices
Get rid of messy wires with built-in screen mirroring. Supporting Airplay and Miracast protocol means users can share screens from iOS devices, MacOS devices, Android devices, and Windows-system devices.
Smart Conference Views
Kandao Meeting Ultra Standard has three discussion modes for multi-attendee framing, main-speaker focusing, and all-attendee displaying. The panorama on top is optional to show all attendees. Under Gallery View and Speaker View, it can automatically adjust the view according to the detected number of attendees.
This discussion mode has seven boxes with a panorama on top. Six of those boxes show attendees separately while highlighting the speaking person in a larger box on the left.
AI algorithm selects up to a maximum of eight speakers and reframes them to equally show attendees. The panorama on top is optional.
Two 180-FOV (field of vision) panoramas are recorded by the two 195-degree lenses showing all attendees while minimizing distortion.
Manual Conference View Adjustment
Highlight a specified speaker by manually panning the main split-screen and zooming in after view-locking.
Optional Panorama on Top
The panorama on top is optional for showing all attendees.
Setup an Ignore Zone
You can mark an Ignore zone and adjust their range to disable auto-framing.
Conferencing with Your Platform of Choice
Zoom, Tencent Meeting, GotoMeeting, Skype, Teams, BlueJeans, DingTalk, Slack, Polycom, StarLeaf, Google Meet, Cisco Webex, and more.
Guarantee Your Data Security
Don't store IP address and location
Leave No Trace
Support one-step log out.
Prevent Information Leakage
Do not provide an open API.
Bluetooth is available to be turned off.
Interfaces and Connection Ports
Kandao Meeting Ultra Standard has several interfaces and connection ports for different requirements. It has two HDMI-out, an HDMI-in, Wi-Fi, a RJ45 network port, and USB ports. It is flexible enough to adapt to various office space.
Users can power off the device through the remote controller, switch video conferencing software, change conference views, turn up/down volume, mute, or start local video recording.
From a connectivity standpoint, it can connect to any 5G hotspot to truly allow users to have conference meetings anywhere or connect through LAN for a ultra-low latency hybrid collaboration.
Wi-Fi 6 5GHz
Auto Power On
It can be set up to auto-start once plugged into the AC outlet. It’s convenient for controlling a hard-to-reach device.
Kensington Security Lock
for preventing theft
¼ Screw Hole
for setting up on tables or tripod stands
for privacy assurance and lenses protection
PoE Power Supply
Communication with the network while powering the device
Support External SD Card
to record local conferences
Kandao Meeting Ultra Standard
|Windows 7 or later, MacOS 10.8 or later
|Teams, Zoom, Tencent Meeting, Google Meet, GotoMeeting, Skype, BlueJeans, DingTalk, Slack, Polycom, StarLeaf, Cisco Webex, and more
|Resolution @ Frame Rate
|MJPEG / H264
|Eight Omni-directional beamforming microphones
|Acoustic Echo Cancellation
|Ports and Interfaces
|USB Type C Out x 1：connect to computer for transmitting audio/video (UVC/UAC)
|USB Type C In x 1: for power supply
|RJ45 x 1: Gigabit Ethernet port for wired network transmission, and PoE power supply
|USB A x 3: for connect with peripherals, such as mouse and keyboard
|HDMI OUT 2.1 x 2：Video output, displaying system interface
|HDMI IN 2.0 x 1：HDMI 2.0, Video input for screen sharing from a computer
|2.4G + 5G，Wi-Fi 6
|Device Lock Hole
|for Kensington Security Lock
|Micro SD Card
|Support FAT32 and exFat format. (Up to 1TB)
|Input: AC100-240V 50/60Hz 0.45A max
Output: DC 15V 3A
|Support IEEE802.3bt; 44-58V 1A
